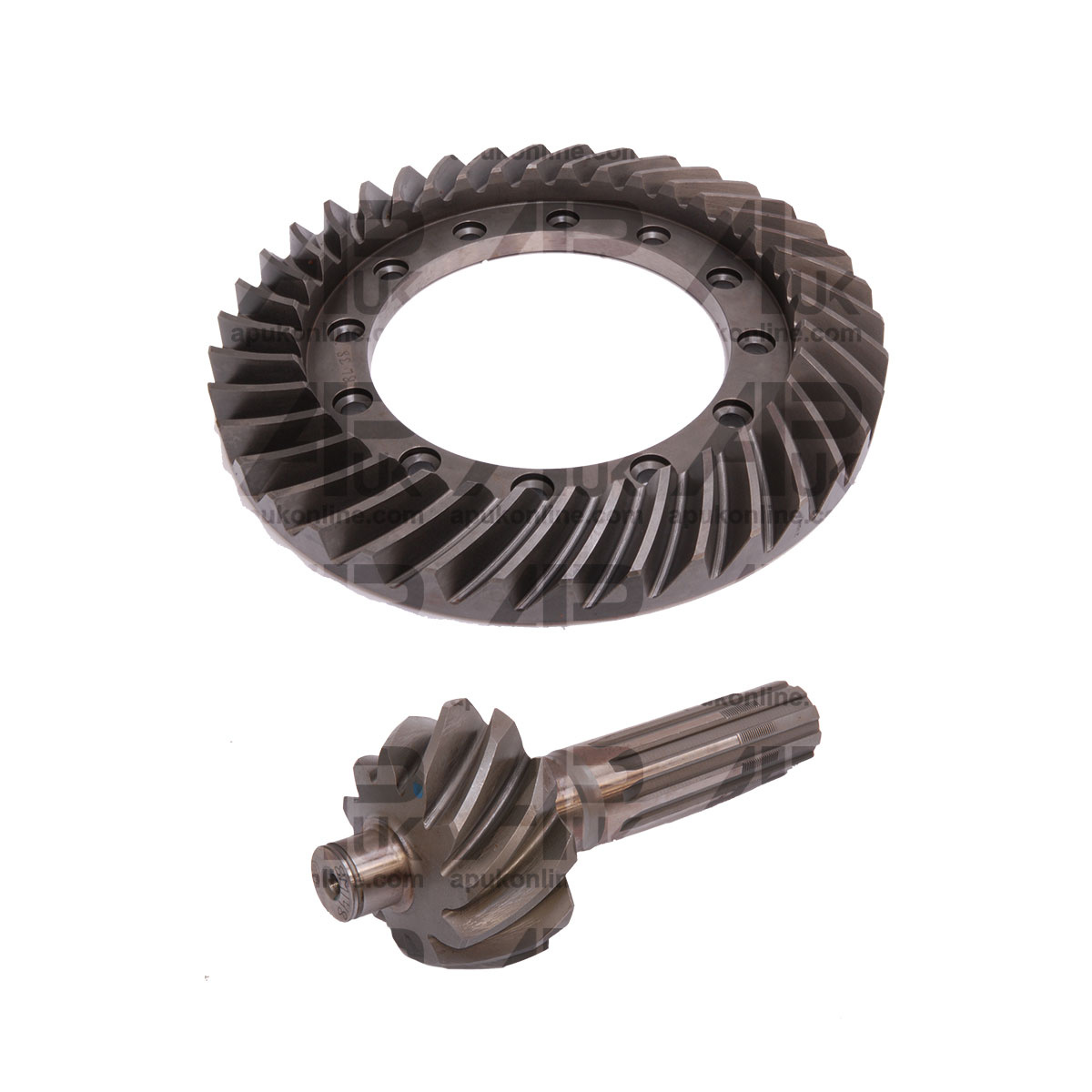

Crown Wheel & Pinion for Massey Ferguson 135 145 148 152 155 158 165 168 Tractor
In stock
SKU
11348
£277.20
£231.00
Pinion Total Length: 250mm
Pinion No. of Teeth: 11
Pinion Splines: 10
Pinion Diameter of Splines: 45 mm
Pinion Spline Length: 120mm
Pinion Bearing Carrier OD: 30mm
Pinion Bearing Shaft Length: 20mm
Pinion Max Diameter: 107mm
Pinion Min Diameter: 88mm
Crown Wheel Diameter: 330mm
Crown Wheel Hole in Centre Diameter: 183mm
Crown Wheel No. of Teeth: 38
Crown Wheel No. of Bolt Holes: 12
Crown Wheel Flange Plate Width: 30.5mm
Crown Wheel Flange Plate Thickness: 16mm
Crown Wheel to Flange Plate Width: 73.5mm
Pinion No. of Teeth: 11
Pinion Splines: 10
Pinion Diameter of Splines: 45 mm
Pinion Spline Length: 120mm
Pinion Bearing Carrier OD: 30mm
Pinion Bearing Shaft Length: 20mm
Pinion Max Diameter: 107mm
Pinion Min Diameter: 88mm
Crown Wheel Diameter: 330mm
Crown Wheel Hole in Centre Diameter: 183mm
Crown Wheel No. of Teeth: 38
Crown Wheel No. of Bolt Holes: 12
Crown Wheel Flange Plate Width: 30.5mm
Crown Wheel Flange Plate Thickness: 16mm
Crown Wheel to Flange Plate Width: 73.5mm
| SKU | 11348 |
|---|---|
| Suitable For | Massey Ferguson 65, 135 (Early & late 6x37 - 11x38), 145 (11x38), 148 (11x38), 152, 152F, 152S, 152V, 155, 158, 165, 168, 175, 175S, 178, 185, 188, 240 (11x38), 250 (11x38), 253 (11x38 > B33001), 253 (11x38 > B33001), 255 (11x38), 255 (11x38), 260 (11x38), 265 (11x38), 275 (11x38), 275E (11x38 > B33001), 285 (11x38), 285 (11x38), 290 (11x38), 290E (11x38 > B33001), 350 (11x38), 355 (11x38), 360 (11x38), 362 (11x38 >B32999), 365 (11x38 >B32999), 375 (11x38 >B32999), 375E (11x38 >B32999), 390 (11x38 >B32999), 390E (11x38 >B32999), 399 (11x38 >B32999), 560 (11x38), 565 (11x38), 575 (11x38), 590 (11x38), 675 (11x38), 690 (11x38), 765, 865 Combine Harvester 560 (11x38), 565 (11x38) |
