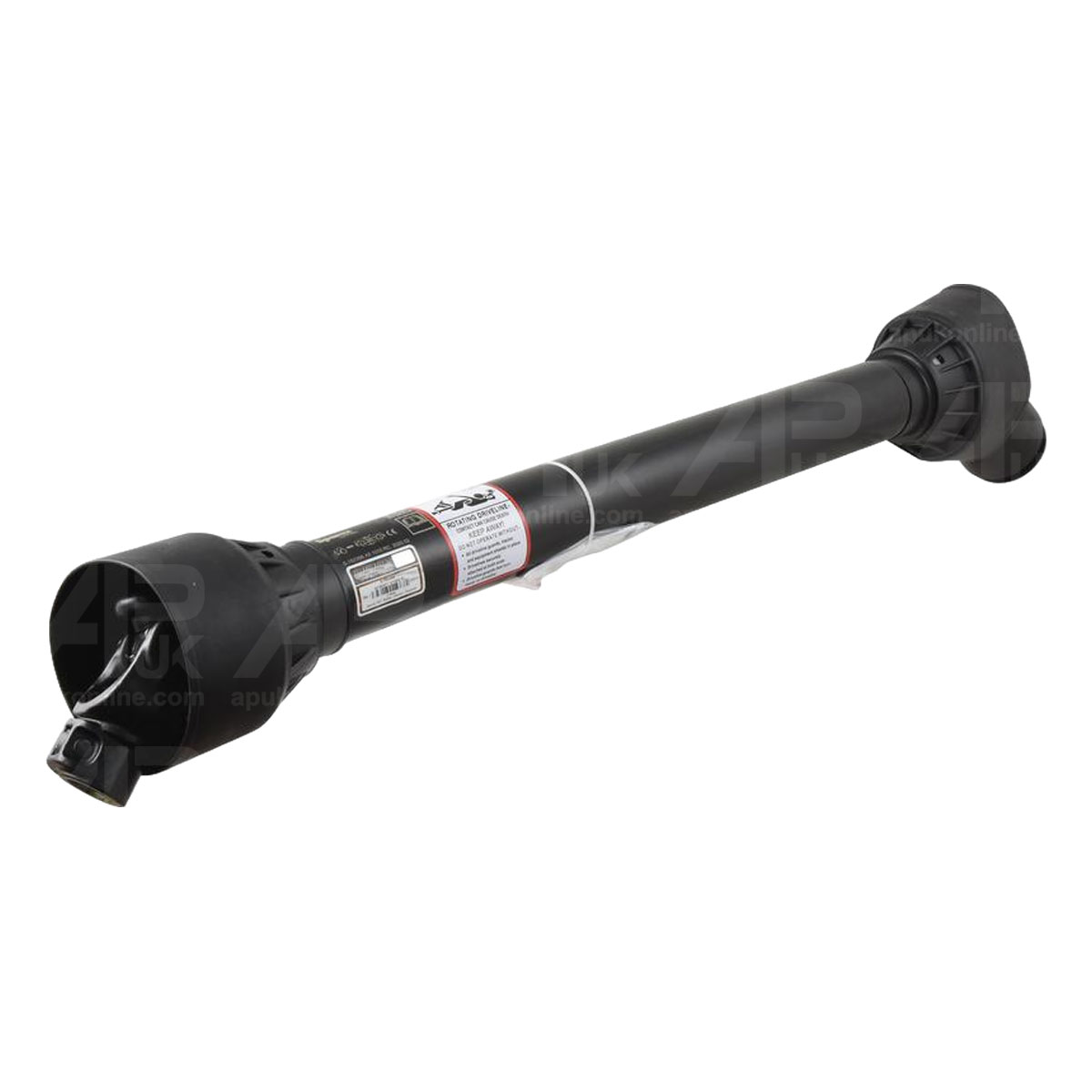

Complete PTO Shaft Assembly 1010mm QR to Ratchet Clutch 35HP Tractor Implement
In stock
SKU
22653
£216.09
£180.07
Clutch Setting Nm: 600
HP Rating @ 540RPM: 35
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Ratchet Clutch
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Lz Length (mm): 1010
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (ins): 50.2
Total Closed Length (mm): 1275
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12507/12508
Type: 2 Row
Universal Joint Dimensions: 27 x 74.5mm
HP Rating @ 540RPM: 35
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Ratchet Clutch
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Lz Length (mm): 1010
Torque (Nm): 460
Torque: 335 - 1240Nm
Total Closed Length (ins): 50.2
Total Closed Length (mm): 1275
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12507/12508
Type: 2 Row
Universal Joint Dimensions: 27 x 74.5mm
Related Products
Check items to add to the cart or
Related Kits
| SKU | 22653 |
|---|---|
| Suitable For | Case International IH Various David Brown Various Ferguson Various Ford / New Holland Various Fordson Various JCB Various John Deere Various Massey Ferguson Various |
